Description:
1. Easy to install.
2. Automatic, convenient, safe and practical.
3. It has the function of power and detection indication.
4. The motion sensor can identify day and night automatically.
5. It has wide detection range made up of up and down, left and right service field.
6. This product is a new type of energy-saving lighting switch,
it adopts high sensitivity detector, integrate circuit and SMT.
7. It utilizes human motion infrared rays as control signal sources,
when one enters the detection field, it will start the controlled load at once.
Specifications:
Colour: Black
Material: ABS
Working Rotation: 180 Degree
Voltage: AC85V~265V, 110V-220V
Standard: LVD, EMC, CE, RoHS
IP Rating: Indoor application IP44

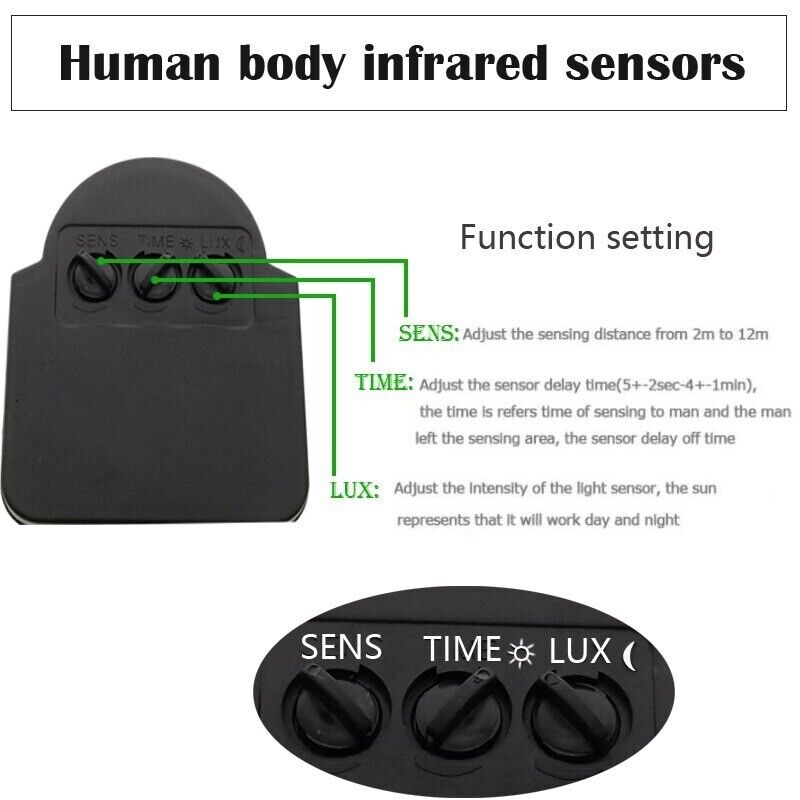

LUX Setting: 2-2000lux svr adjustable

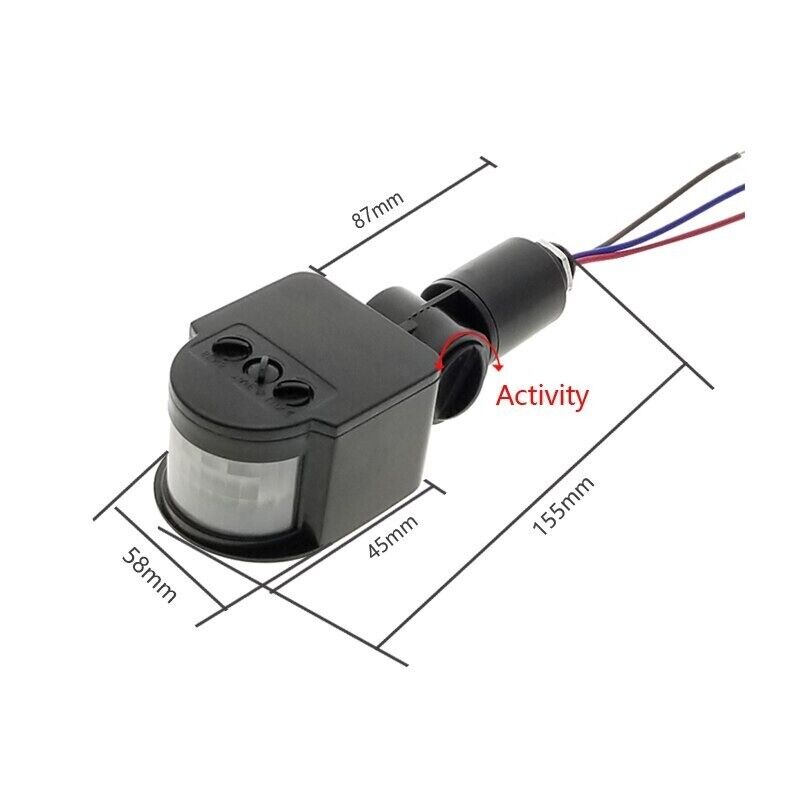

Size: As shown on the picture
Induction lighting time: 5s~6min adjustable time
Detection distance: Approx 12M, installation 1.5-2.5M High

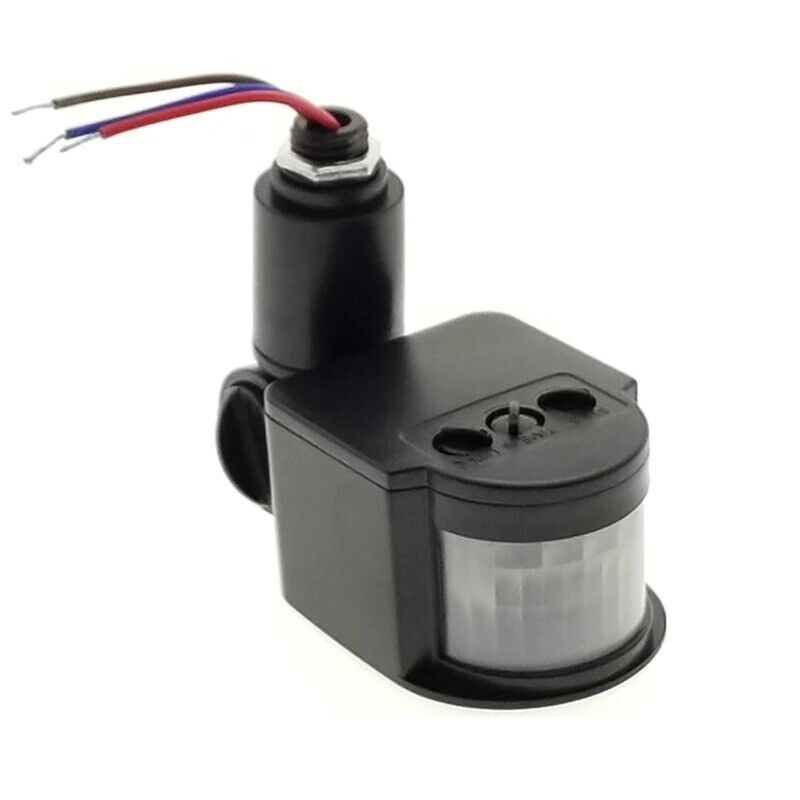

Connection:
Blue colour: Negative line (-)
Brown colour: Live wire (+)
Red: Ground wire
For 220v motion sensor, you just provide 220V voltage to sensor, don't need the driver.
